What is a Capsule Pressure Gauge and How Does It Work?
A Capsule Pressure Gauge is a vital instrument widely used in various industries. It measures pressure in a range of applications, from HVAC systems to laboratories. Understanding how it works can enhance precision in operations.
This gauge operates on the principle of a pressure-sensitive capsule. When pressure exerted on it changes, the capsule flexes. This movement then translates into a readable measurement, ensuring accuracy. The compact design allows it to fit in tight spaces, making it versatile.
Despite its effectiveness, users should be aware of its limitations. For instance, extreme temperatures can affect its accuracy. Regular calibration is necessary to maintain reliability. Understanding these factors is crucial for optimal use of the Capsule Pressure Gauge.
What is a Capsule Pressure Gauge?
A capsule pressure gauge is a specialized instrument designed to measure pressure in various applications. It consists of a flexible, curved metal capsule that responds to pressure changes. This capsule is typically made from materials that can withstand hostile environments, enhancing its reliability. When pressure is applied, the capsule deforms, converting pressure into a rotational movement. This movement is then amplified and translated into readable data on a dial.
These gauges are particularly effective for low-pressure measurements, often found in industrial settings. Their simplicity and accuracy make them a popular choice. However, the calibration process can be a challenge. If not calibrated correctly, readings may be inaccurate. Users must conduct regular checks to maintain precision. This can lead to potential errors if overlooked.
Maintenance is crucial for consistent performance. A worn capsule can lead to leaks, compromising pressure measurement. Regular servicing can help mitigate this issue. Despite their robustness, these gauges require care and attention. Ignoring signs of wear and tear may lead to operational failures. Thus, users should remain vigilant and proactive in their maintenance routines.
Pressure Measurement in Different Applications

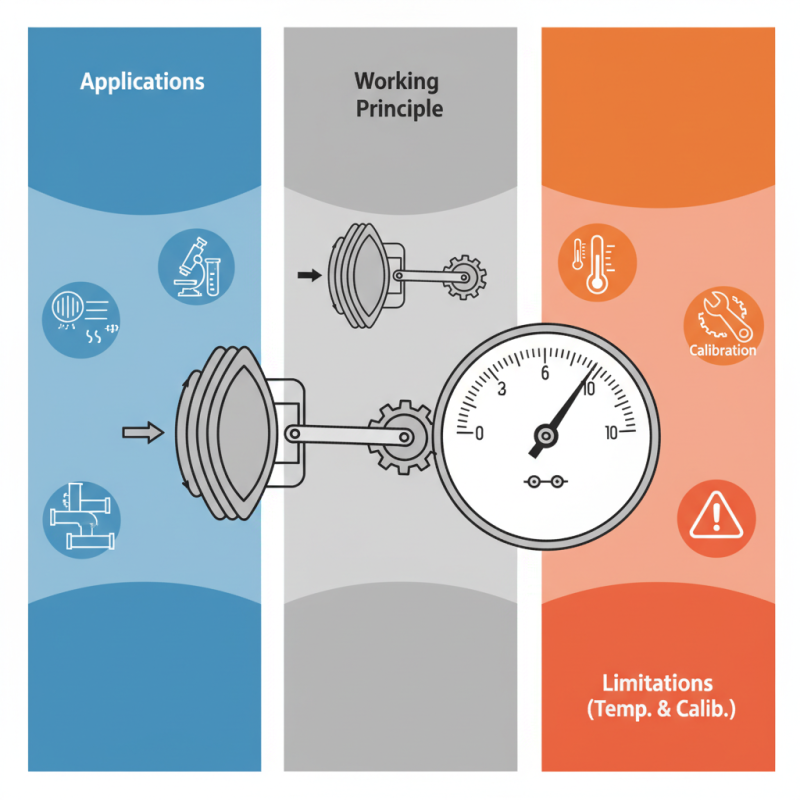

The Working Principle of Capsule Pressure Gauges
Capsule pressure gauges are essential tools that measure pressure in a variety of applications. Their primary design consists of a sealed capsule that reacts to internal pressure changes. When pressure increases, the capsule deforms, and this motion is translated into a reading on the gauge dial.
The working principle of capsule pressure gauges relies on the elastic properties of the capsule material. As the pressure shifts, the capsule flexes, causing a corresponding movement of a pointer on a calibrated scale. This simple yet effective mechanism allows for accurate readings and consistent performance. Observing the dial under varying pressures provides crucial data for monitoring systems.
Tip: Regular calibration is vital for accurate readings. Ensuring the capsule is free from contaminants can significantly extend its lifespan.
While these gauges are reliable, they do have limits. High-pressure applications may pose challenges, as excessive pressure can lead to gauge failure. It’s important to choose the right type and size for your specific needs to avoid inaccuracies.
Tip: Always consult technical documentation to ensure correct usage and installation. Balancing pressure readings can enhance safety and efficiency in your operations.
Components of a Capsule Pressure Gauge
A capsule pressure gauge is a vital instrument for measuring pressure in various applications. Its design consists of several key components that work together to provide accurate readings. The primary component is a flexible, metallic capsule. This capsule expands or contracts in response to pressure changes. The movement is translated into a reading on the gauge dial.
Another important component is the transmission mechanism, usually involving a linkage system. This system connects the capsule to the pointer on the gauge. As the capsule moves, the linkage translates this motion. The pointer then moves across a calibrated scale, indicating the pressure level. Additionally, a protective casing surrounds these components, shielding them from external damage.
Choosing the right materials for these components is essential. Metals used must withstand environmental conditions and pressure variations. For instance, stainless steel is often preferred for its durability. Yet, challenges arise with material fatigue over time, leading to potential inaccuracies. Regular maintenance and checks are crucial to ensure reliable performance. Without proper care, readings can become misleading, affecting various operations.
Applications of Capsule Pressure Gauges in Various Industries
Capsule pressure gauges are widely used across various industries due to their precision and reliability. They are designed to measure pressure in gases and liquids, providing crucial data for operational efficiency. One notable application is in the food and beverage industry, where maintaining specific pressure levels ensures product consistency and safety. For instance, breweries utilize these gauges to monitor fermentation processes, ensuring optimal conditions are maintained.
In the pharmaceutical industry, capsule pressure gauges play a vital role in quality control. They help monitor the pressure in various processes, such as filling and packaging. Accurate pressure measurements prevent contamination and ensure that medications are safe and effective. Many professionals have noted occasional discrepancies in readings, prompting regular calibration and maintenance checks.
Tips: Always keep calibration records for your gauges. This helps in identifying any drift in accuracy over time. Regular training on proper handling can also minimize errors during measurements. In the oil and gas sector, these gauges assist in monitoring pressure in pipelines, critical for both safety and efficiency. Regular inspections can help address any wear and tear, ensuring reliability and longevity in these harsh environments.
Advantages and Limitations of Using Capsule Pressure Gauges
Capsule pressure gauges offer both benefits and drawbacks in various applications. On one hand, their design allows for accurate pressure measurements in harsh environments. They are often employed in industries like chemical processing and food production. Data from industry reports indicate that capsule gauges can measure pressures as low as 1 psi, making them suitable for sensitive applications.
However, they are not without limitations. Capsule gauges may face challenges in extreme temperature conditions, which can affect their reliability. Data suggests that at temperatures beyond 150 degrees Fahrenheit, accuracy can drop significantly. Additionally, the flexibility of the capsule can lead to mechanical wear and tear over time, which may require more frequent calibration or replacement.
Users should carefully assess these factors. While the benefits of accurate measurements and robustness are noteworthy, the potential for reduced performance in specific conditions cannot be ignored. Continuous monitoring and proper maintenance practices are essential to mitigate these issues. Therefore, understanding both the advantages and limitations is crucial for effective use.
