A pressure gauge measures how strongly water pushes against a sensing element. In many mechanical gauges, that element is a curved Bourdon tube. Water pressure makes the tube flex slightly, and a linkage moves the pointer across the dial. Other gauges use a flexible diaphragm that shifts under pressure. The movement is tiny. The dial makes it visible.
Most water-system gauges display gauge pressure: pressure above the surrounding air, usually in psi or bar. They do not directly show flow rate. A reading near a pump may differ from one at a distant tap because pipes, valves, and elevation affect pressure. Small details matter. A needle that trembles during pump cycling may reflect pressure pulsation, not a steady system value. A gauge can look precise and still mislead.
For a useful check, read the dial while the system is operating under known conditions, and note where the gauge is installed. A shut-off valve, clogged connection, or trapped air can affect the reading. Compare readings over time, and investigate sudden changes rather than assuming the gauge has failed. Gauges can drift, too. Periodic comparison with a suitable reference instrument helps reveal whether the pointer still returns to zero and tracks pressure consistently.
Comparing water pressure gauges starts with the pressure range. Choose a scale that keeps normal readings near the middle, while leaving room for brief pressure spikes. A gauge rated too high can make small changes hard to read. Accuracy matters, too; check the stated tolerance against the needs of the system. A large, clear dial helps when readings must be taken in a dim pump room or from several feet away. Small details count.
Check the connection size, mounting position, and materials that contact the water. These must suit the pipework and water conditions. For pumps or systems with frequent pressure changes, consider a gauge designed to handle pulsation. Vibration can also affect readability and service life. A tidy dial does not guarantee a suitable instrument. Even a careful choice may miss an installation issue, so verify that the gauge can be read and serviced after fitting.
Tips: Compare the gauge range with actual operating readings, not just the system’s maximum rating. Confirm connection compatibility before ordering. After installation, check the reading against a trusted reference; small errors can otherwise go unnoticed.
Common water-pressure reference points shown in psi. Bar equivalents are calculated using 1 psi = 0.0689476 bar.
These are unit-conversion reference points, not product ratings or universal operating targets. When comparing gauges, check that the gauge range suits the system pressure and that its accuracy and connection match the application.
For water systems in 2026, a useful top-ten shortlist should match the gauge to the job, not just the dial size. Consider dry-dial gauges for steady indoor lines, liquid-filled gauges for vibration, stainless-steel cases for damp rooms, and corrosion-resistant wetted parts for treated water. Digital gauges offer clear readings, while dual-scale dials show pressure in two units. Bottom-connect models suit vertical pipes; rear-connect models fit panels. Large dials are easier to read from across a pump room, and dampened mechanisms can help where pressure pulses are common. That makes ten practical options, but no single design suits every installation.
Check the gauge’s pressure range against normal operating pressure and likely surges. A range that is too broad can make small changes hard to see. Confirm connection size, thread type, wetted materials, and stated accuracy before purchase. On a real system, leaks or a blocked port can distort readings. A gauge is useful, not infallible.
Tips: Install the gauge where it can be read safely, and avoid overtightening the fitting. Compare its reading with a trusted reference during maintenance. If the needle sticks or returns slowly, investigate; replacing it without checking the cause may only postpone the problem. Good practice is sometimes less tidy than the manual suggests.
For a home water system, choose a gauge that makes small pressure changes easy to read. A clear dial around 2.5 to 4 inches is often practical near a pump or pressure tank. Match the pressure range to the system: normal readings should sit near the middle of the scale, with room for expected surges. Too wide a range can hide useful changes. Too narrow a range may overload the gauge. Check the connection size, thread type, and mounting position before buying. Small details matter.

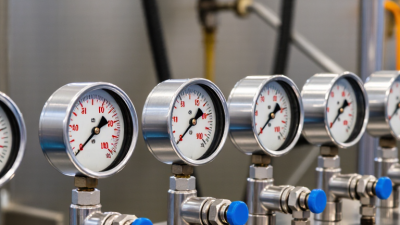

Commercial systems often need larger dials for quick checks in mechanical rooms, while industrial lines may need tougher housings and materials compatible with the water and surroundings. Pulsating pumps can make the pointer jump; a damped or liquid-filled gauge may improve readability, though it is not right for every temperature or installation. Check the stated accuracy and pressure rating, and compare readings with a reliable reference during maintenance. A gauge can still be wrong. I would not choose by dial size alone: vibration, moisture, and hard-to-reach mounting points can change what works in practice. When conditions are uncertain, confirm the specifications with a qualified technician.
A water pressure gauge is useful only when its reading reflects pressure at the point that matters. Install it near the equipment or pipe section being monitored, with the dial facing a readable direction. A short, vibration-free connection helps reduce movement and wear. Use a shutoff valve so the gauge can be serviced safely. Before installation, confirm the pressure rating, connection size, and suitable range. A gauge that operates near the middle of its scale is usually easier to read. Water hammer can still cause sudden spikes.
Calibration begins with a suitable reference gauge and a stable pressure source. Isolate the instrument, relieve pressure, and compare readings at several points across its working range. Never loosen a fitting while the line is pressurized. Record the readings, date, and any adjustment. If the gauge sticks, returns slowly to zero, or differs noticeably from the reference, investigate before relying on it. A single check may miss intermittent faults. That is easy to overlook.
During routine maintenance, look for fogging, corrosion, a cracked window, loose fittings, or a pointer that does not rest at zero. Check for leaks after service, then restore pressure gradually and watch the dial. Replace damaged gauges rather than forcing a repair. Keep a simple service log; it helps reveal recurring drift. Some installations are awkward to reach, and inspection may get delayed. That practical weakness deserves attention.
| No. | Gauge Type | Typical Water-System Use | Suggested Measurement Range | Typical Accuracy | Installation Guidance | Calibration and Maintenance |
|---|---|---|---|---|---|---|
| 1 | Liquid-filled Bourdon-tube gauge | Pumps, booster sets, and locations with vibration or pressure pulsation | 0–100 psi (0–7 bar) for many building systems; select a range suited to the actual operating pressure | Commonly ±1.0% to ±2.5% of full scale, depending on grade | Install upright where readable; use a suitable isolation valve and pressure-rated connection. Confirm the fill fluid and wetted materials are suitable for the water and environment. | Check for leakage, case damage, and pointer movement. Compare with a traceable reference at several points; set the interval from service conditions and calibration history. |
| 2 | Dry-case Bourdon-tube gauge | Residential plumbing, utility lines, and steady-pressure monitoring | 0–100 psi (0–7 bar) or 0–160 psi (0–11 bar), selected for the system’s normal pressure | Commonly ±1.0% to ±2.5% of full scale | Mount in a protected, accessible position. Avoid locations with severe vibration, water hammer, or temperature beyond the gauge’s rated limits. | Inspect the lens, dial, fitting, and pointer zero. Verify readings against a calibrated reference if readings are suspect or required by the maintenance program. |
| 3 | Digital pressure gauge | Commissioning, troubleshooting, and applications needing a clear numerical reading | Common ranges include 0–100 psi (0–7 bar) and 0–300 psi (0–21 bar) | Often ±0.25% to ±0.5% of full scale; confirm the specific instrument specification | Check pressure, temperature, ingress-protection, and battery ratings. Use compatible fittings and avoid exceeding the rated overpressure limit. | Check battery condition and display operation. Calibrate against a traceable pressure standard at defined points; follow the instrument’s stated procedure. |
| 4 | Panel-mount pressure gauge | Water-treatment skids, pump control panels, and equipment enclosures | Commonly 0–100 psi (0–7 bar) or 0–160 psi (0–11 bar) | Commonly ±1.0% to ±2.5% of full scale | Use a panel cutout and retaining hardware specified for the gauge. Keep the pressure connection supported and accessible for isolation and service. | Inspect mounting security and the pressure line for leaks or blockage. Remove or isolate safely before calibration or replacement. |
| 5 | Low-range pressure gauge | Low-pressure distribution, gravity-fed systems, and filter monitoring | 0–15 psi (0–1 bar) or 0–30 psi (0–2 bar), where those ranges match expected pressure | Commonly ±1.0% to ±2.5% of full scale | Choose a range that keeps normal readings away from the scale endpoints. Protect the gauge from pressure surges that could exceed its rating. | Because small errors can be significant at low pressure, verify zero and compare readings with an appropriate low-pressure reference. |
| 6 | High-pressure gauge | High-pressure pump discharge, pressure testing, or specialized water equipment | Common ranges include 0–300 psi (0–21 bar) and 0–600 psi (0–41 bar); use only where system ratings permit | Commonly ±1.0% to ±2.5% of full scale | Verify that the gauge, fittings, valves, and connected pipework are rated for the maximum possible pressure. Install behind suitable protection where failure could create a hazard. | Inspect for overload damage and leakage. Use a reference and procedure rated for the full test pressure; never exceed the lowest-rated component. |
| 7 | Compound pressure/vacuum gauge | Pump suction lines and systems where pressure may move below atmospheric pressure | Example scale: −30 inHg to 0–60 psi (approximately −1 bar to 0–4 bar) | Commonly ±1.0% to ±2.5% of full scale | Install at a suitable suction test point and account for the pressure drop between the measurement point and pump. Use fittings compatible with the line. | Check the pointer at atmospheric pressure and inspect for blockage or leakage. Verify both vacuum and positive-pressure portions if both are used. |
| 8 | Differential-pressure gauge | Filter loading, strainers, heat exchangers, and pressure drop across equipment | Common low differential ranges include 0–15 psi (0–1 bar) or 0–30 psi (0–2 bar) | Varies by design; commonly specified as a percentage of full scale | Connect the high- and low-pressure ports to the correct sides of the equipment. Follow the manufacturer’s instructions for impulse lines and pressure limits. | Check both connections for leaks or blockage and confirm the zero reading with equal pressure on both ports. Calibrate using a differential-pressure reference. |
| 9 | Sanitary-diaphragm pressure gauge | Potable-water or hygienic processes requiring a cleanable process connection | Commonly 0–100 psi (0–7 bar); select the range and materials for the process | Depends on the gauge and diaphragm assembly; confirm the complete assembly specification | Use a compatible sanitary connection and approved wetted materials. Install to allow cleaning, drainage, and access without trapping process fluid. | Inspect the diaphragm and seal for damage. Clean using an approved procedure and calibrate the assembled instrument without damaging the diaphragm. |
| 10 | Remote-seal pressure gauge | Hot, corrosive, dirty, or hard-to-reach water applications where the instrument needs separation from the process | Range depends on the system; common water-service examples include 0–100 psi (0–7 bar) | Depends on the gauge, seal, and fill system; account for assembly effects | Install the seal and capillary as an assembled system. Avoid kinks, excessive heat, or elevation changes that conflict with the assembly specification. | Inspect the seal, capillary, and joints. Calibrate the complete assembly and follow the specified temperature and mounting conditions. |
Selection and service note: Pressure ranges and accuracy figures above are common examples, not universal specifications. Select instruments based on the system’s normal and maximum pressure, water compatibility, temperature, connection, and applicable local requirements. Isolate and depressurize the line before installation or removal. Calibration frequency should be based on the application’s risk, operating conditions, accuracy needs, and calibration history; an annual check may be a starting point where no interval has been established.
